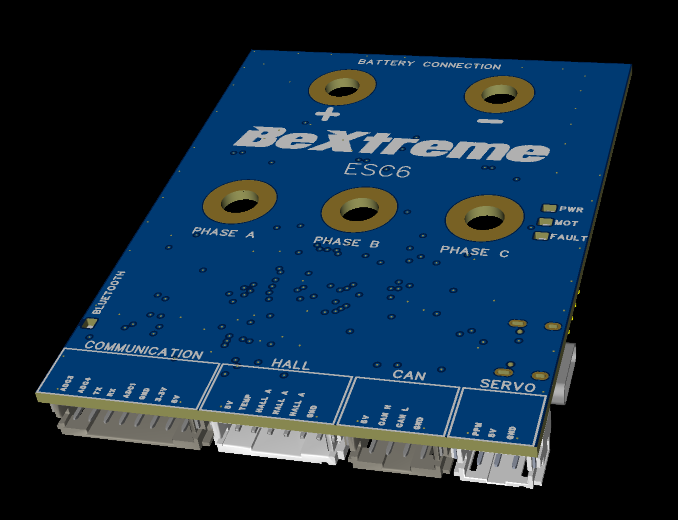

ESC6 Motor Controller

Unlock superior performance and versatility with the state-of-the-art ESC6 electronic speed controller. Specifically engineered for high-performance electric vehicles, including e-bikes, scooters, and electric skateboards, the ESC6 delivers unparalleled flexibility, advanced cooling, precise control, and premium build quality.

Key Features:

High-Quality MOSFETs: Ensures excellent efficiency and minimal heat generation for sustained, powerful performance.

Advanced Thermal Management: Integrated cooling system with unique options for active fan or water pump cooling.

Flexible Configuration: Easily customizable settings via intuitive open-source configuration tools.

Multiple Interface Options: Compatible with PPM, ADC, UART, I2C, and SPI connections for maximum adaptability.

Built-In Accelerometer and Gyroscope: Enhanced control, stability, and monitoring capabilities.

Western Chip Technology: Utilizes premium-quality Western-made chips for reliability and consistent performance, unlike many competitors using Chinese chips.

Precision Current Measurement: Accurate and real-time current measurement for optimal performance and safety.

Solder-Free Connectivity: Easy, reliable plug-and-play installation without the need for soldering.

Built-In Bluetooth: Integrated Bluetooth module providing wireless connectivity with a range exceeding 100 meters.

Technical Specifications:

Voltage Range: 14V – 100V (4S – 21S LiPo)

Continuous Current: 80A (with appropriate cooling)

Peak phase Current: 150A

Dimensions: 50mm x 100mm x 12mm

Weight: Approx. 120g

Protection Features:

Overcurrent Protection: Guards against sudden current surges.

Overvoltage Protection: Protects against excessively high input voltage.

Thermal Protection: Automatically manages power to prevent overheating.

Motor Compatibility:

Compatible with a variety of motors, including:

Sensored and Sensorless Brushless DC (BLDC)

DC and FOC (Field-Oriented Control) Motors

Cooling Options:

Water Cooling Capability: Optional water pump-based cooling.
Active Fan Cooling: Enhanced cooling through active ventilation.

Software Support:

Supports firmware updates, real-time data monitoring, and comprehensive customization via user-friendly software tools.
